Owners Guide
Thank you for purchasing an Oar Board®, welcome to the Oar Board® community. We’re thrilled to have you on board.
This guide includes everything you need to get set up and start rowing. If you have any questions along the way, our team is here to help—just give us a call or send us an email.
Guide Topics
Setting up your Board
Everything you need to assemble your Oar Board®, make adjustments, and prepare for your first time on the water.
Safety
Important information on staying safe on the water, recommended equipment, and best practices for rowing in a variety of conditions.
Care & Maintenance
Guidance on cleaning, storage, inspections, and routine maintenance to keep your Oar Board® performing its best.
Do’s and Don’ts
Helpful tips, common mistakes to avoid, and recommendations for getting the most from your Oar Board®.
Setting up your Oar Board®
Setting up your Oar Board® Rower Unit with an Oar Board® Paddle Board
Setting up your Oar Board® Rower Unit with an Oar Board® Paddle Board
Setting up your Oar Board® Rower Unit on a standard paddle board without deck rings
Setting up your Oar Board® Rower Unit on a standard paddle board without deck rings

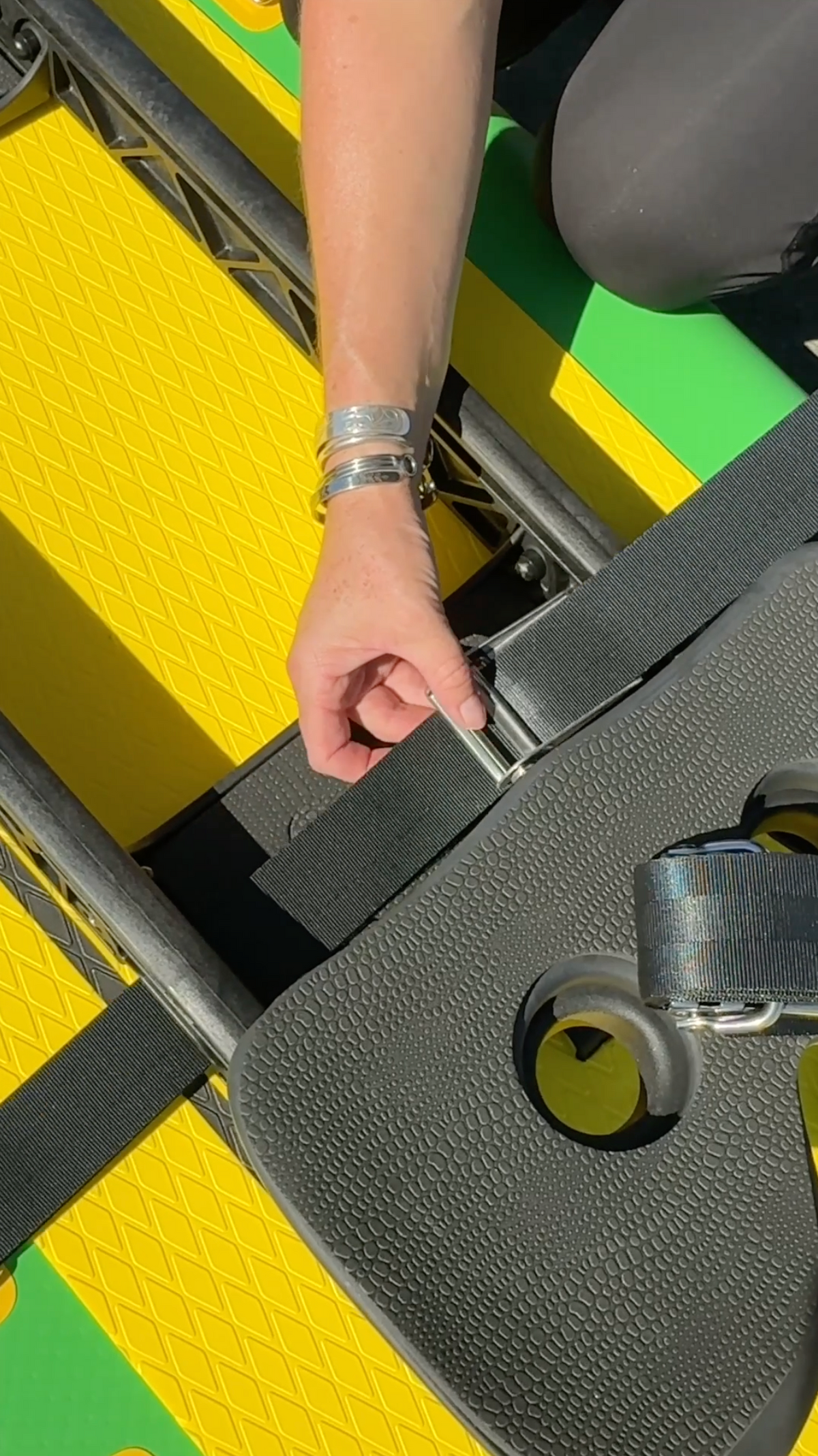

Attaching your Oar Board® Rower to your paddle board - how to use the buckle strap
Attaching your Oar Board® Rower to your paddle board - how to use the buckle strap

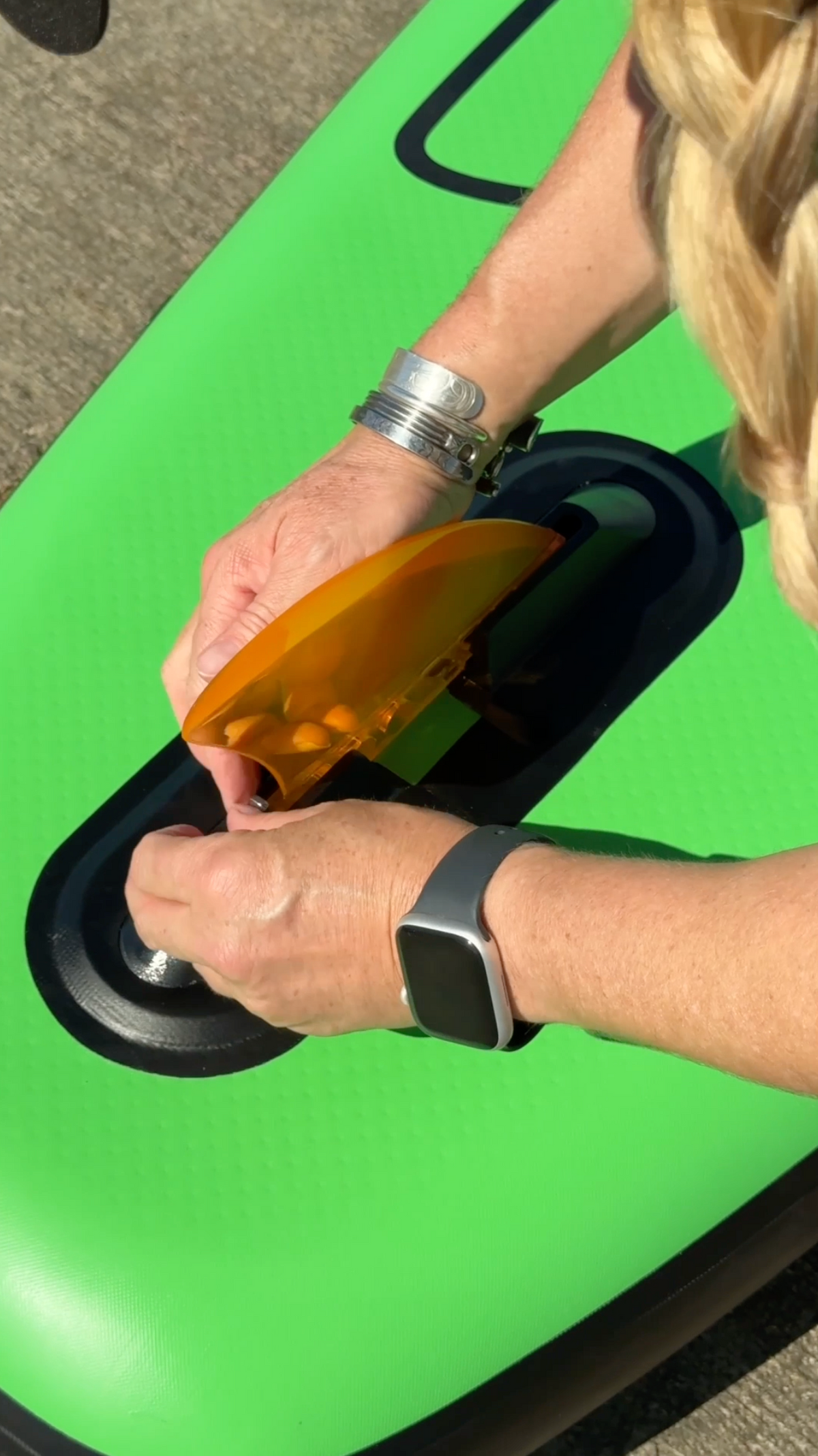

How do I install a standard fin on my paddle board?
How do I install a standard fin on my paddle board?

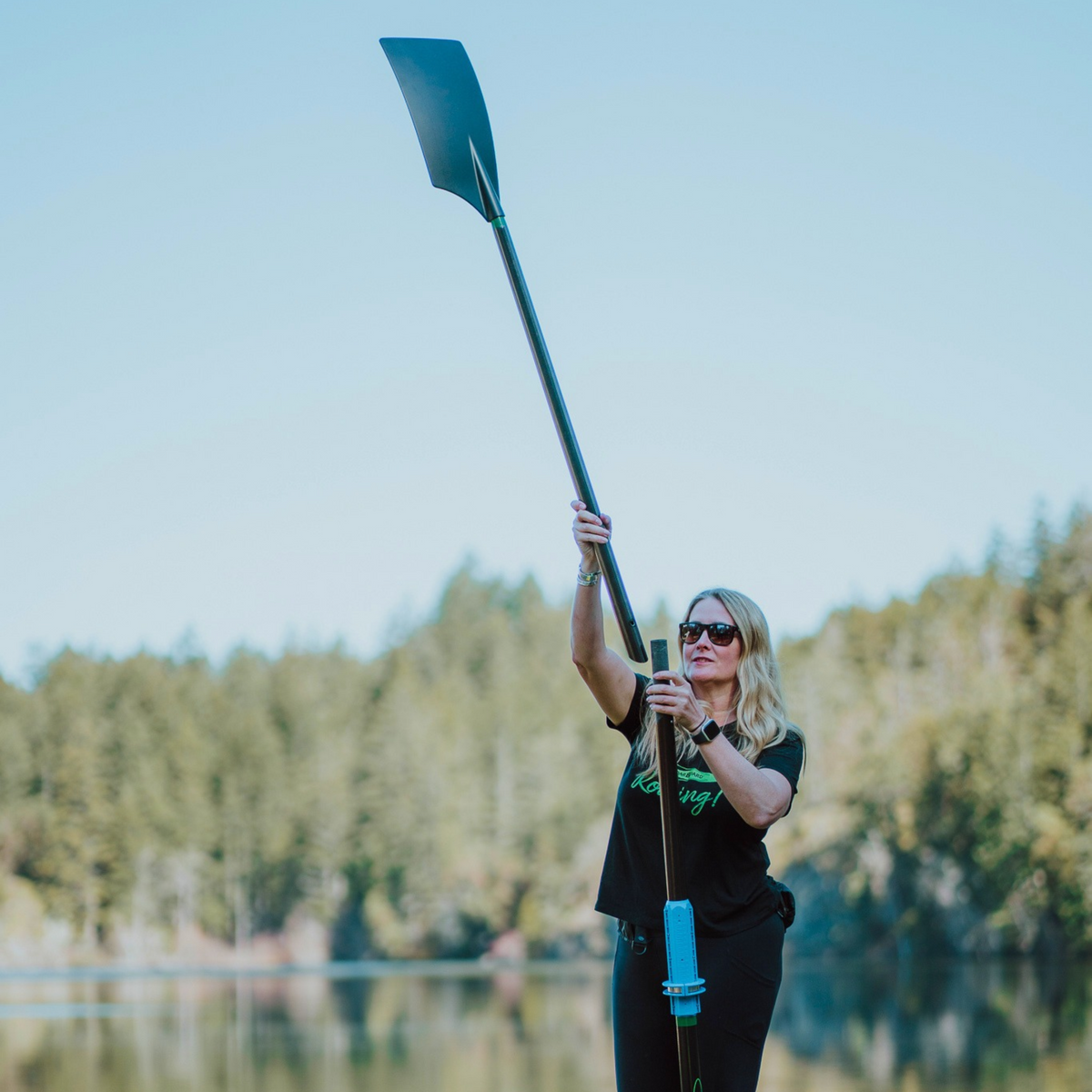

How do I assemble my two part oars?
How do I assemble my two part oars?

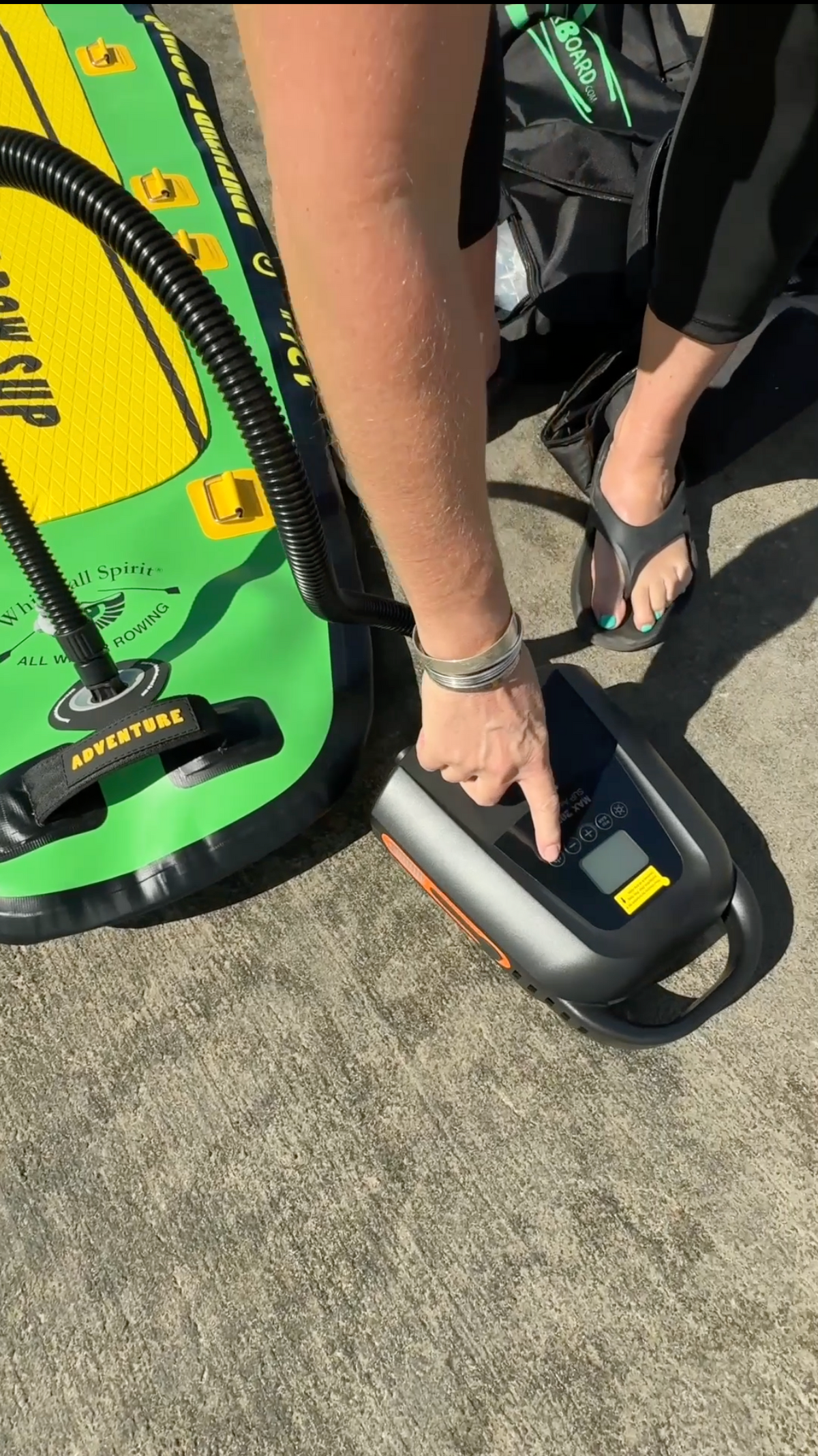

How hard is it to pump up your inflatable paddle board?
How hard is it to pump up your inflatable paddle board?
Quick Videos
Transporting and Storing the Oar Board®
How to pack your rowing gear in the Oar Board® Travel Bag
How to pack your rowing gear in the Oar Board® Travel Bag
How to easily get you Oar Board® on your roof rack
How to easily get you Oar Board® on your roof rack
How to strap your paddle board to your vehicle using KanuLock straps
How to strap your paddle board to your vehicle using KanuLock straps
What about storage and handling issues?
What about storage and handling issues?
SUP Care & Maintenance
Inflation & Air Pressure
Inflation & Air Pressure
Paddle Board Material Maintenance
Paddle Board Material Maintenance
Preventing Sun Damage
Preventing Sun Damage
Cold Weather & Low Temperatures
Cold Weather & Low Temperatures
Repairing Your SUP
Repairing Your SUP
Sculling Oars
The following parts are included with 2 part Sculling oars
- Carbon Fiber Shaft
- Fiberglass Blades – Black Gelcoat finish
- Polyethylene Oar Collar – Blue
- Adjustable Plastic Button with Stainless Steel Clamp/fastener
- Grip – Rubber
- Push Button Spring Clip – stainless steel
- Integral fiberglass reinforcement sleeve – a 14´ or 36cm long extension tube
Oar Maintenance Recommendations
To keep your oars in good condition, separate the two sections and hose off with fresh water after use. Wipe with a cloth to remove salt, sand or dirt. If these two part sculling oars are kept conjoined, any salt water, grit or sand that is left in the joint or around the push button can cause sticking and eventually lead to permanent fusing of the two sections completely. They would then no longer come apart. Spray the metal parts with a silicon-based spray occasionally to keep them from oxidizing. Store oars out of direct sunlight to reduce UV exposure. Wax the carbon fibre shaft and gelcoat blade using any auto wax to keep them shiny and protect against UV damage. Before applying the wax, wash the surfaces and dry thoroughly.
Using Your Oars
One button per oar is set to suit the required overlap by locating them on the blue plastic collar and using a slot screwdriver tightening them securely in place. Your oars come with a red stripe and a green stripe at the base of the shaft near the blade and a red stripe above the button on the second half of the shaft to match the red striped oar blade section. Each oar fits its own individual shaft, so be sure to set them up with red-to-red and green-to-green matches. To separate the shaft push down on both push button spring clips on both sides of the shaft simultaneously while pulling the two sections apart.
Contact Us
We’re here to help.
Have questions? Contact us or chat live to learn more and confirm if your paddle board is compatible with the Oar Board®.
Getting the Most from Your Oar Board®
Simple recommendations and common mistakes to help protect your equipment, improve performance, and get the most from every outing.
Do’s
- Do make sure your foot stretcher pad pins are pushed down all the way into the correct hole before rowing to ensure they don’t slip out.
- Keep Oar Board® tracks clean and free from sand, mud, or crusted salt to prevent abrasion of the track.
- Make sure your Oar Board® is equidistant from the sides on the SUP on all four corners before rowing (it might slip slightly off center while carrying to the water). Handy tip: once you’re satisfied you have the ideal spot determined for your board, making some marks or adding some stickers to the board at the four corners of the unit helps.
- Gaskets: Once your weight is on the unit the added pressure on the four neoprene gaskets located on the bottom of each corner keep the unit in its centered position. Remember to replace any gaskets that come off before using your Oar Board® unit.
- Hose salt water off all surfaces after each use to help keep your Oar Board® unit pristine and prevent salt build up.
Don’ts
- Do not over tighten buckle – too much tension will produce an indent or print in some SUP surfaces. Release the buckle’s tension or remove the Oar Board® unit from the SUP when not in use to prevent SUP surface printing.
- Do not use your Oar Board® rigger arms to pull the SUP up out of the water. Instead remove the outrigger carriage from the board first, then use the Oar Board® seat base to grab onto and lift or carry the board.
